System76 · Case

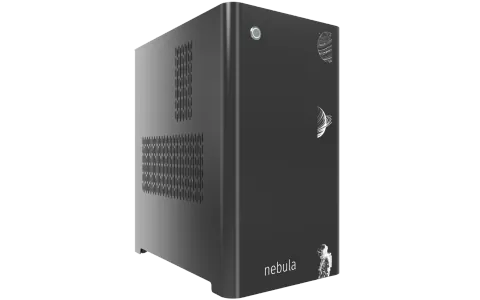

System76 nebula49
At a glance
- Motherboard support
- E-ATX (up to 10.7 inches), ATX, Mini-DTX, DTX, Mini-ITX
- GPU clearance
- 386.5 mm
- Cooler clearance
- 163 mm
- PSU support
- ATX
THE DETAILS
General specifications
Size & fit
| Width | 262 mm |
|---|---|
| Height | 462 mm |
| Length | 408 mm |
| PSU support | ATX |
| GPU clearance | 386.5 mmRecommended maximum; internal clearance is 396.5 mm. |
| PSU clearance | Maximum not specifiedSupports standard ATX power supplies. Check the PSU body and cable clearance for the intended build. |
| Cooler clearance | 163 mm163 mm from the motherboard to the duct side. The duct also limits top-to-bottom width to 142 mm and front-to-back length to 215 mm with fans. |
| Motherboard support | E-ATX (up to 10.7 inches), ATX, Mini-DTX, DTX, Mini-ITX |
Features
| Fan support | CPU duct: 2 x 120 mm; bottom intake: 1 x 140 mm; side intake: 2 x 120 mm (optional add-on) |
|---|
Only supplied specifications are shown. Confirm the exact variant and required compatibility checks before buying.
Explore the platform, related parts & guides
Explore this product in context
Plan the installed configuration
External case dimensions do not establish GPU or cooler clearance. Internal limits can change with drive cages, radiators and fans. A case name alone cannot confirm a complete fit.
Before choosing parts
- Verify supported motherboard and PSU form factors in the case manual.
- Measure GPU length, thickness and power-cable space with the planned cooling installed.
- Check CPU cooler height and radiator thickness as separate limits.
