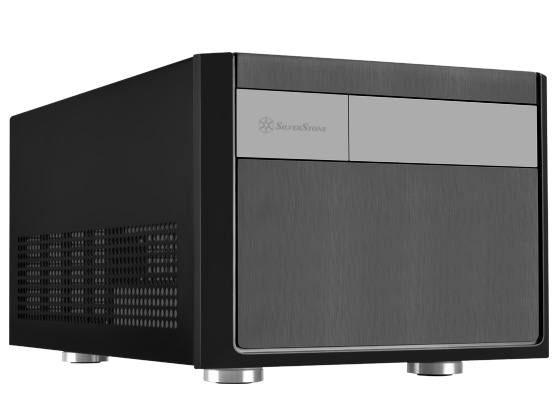

Silverstone Sugo SG11 Micro ATX Mini Tower Black · Size & fit
Width
270 mm
Height
212 mm
Length
393 mm
Form factor
Micro ATX Mini Tower
PSU support
ATX (PS2)
GPU clearance
368 mmUp to 368 mm long and 113 mm wide; fan and drive cage configuration can reduce clearance.
PSU clearance
Depends on installed drivesThe original specification allocates 370 mm to the PSU plus optical drive. A later manual recommends a modular PSU no longer than 180 mm; allow space for cables.
Cooler clearance
82 mm
Motherboard support
Micro-ATX, Mini-DTX, Mini-ITX
Features
Silverstone Sugo SG11 Micro ATX Mini Tower Black · Features
Drive bays
9 x internal 2 5 bays; 3 x internal 3 5 bays
Fan support
Side: 1 x 120 mm intake fan (included, 1200 rpm); rear: 1 x 80 mm fan position / optional cross-flow fan; top: 1 x 80 mm fan position
Only supplied specifications are shown. Confirm the exact variant and required compatibility checks before buying.
Other published Silverstone models
Same category and brand; these are navigation alternatives, not performance or compatibility recommendations.
External case dimensions do not establish GPU or cooler clearance. Internal limits can change with drive cages, radiators and fans. A case name alone cannot confirm a complete fit.
Before choosing parts
Verify supported motherboard and PSU form factors in the case manual.
Measure GPU length, thickness and power-cable space with the planned cooling installed.
Check CPU cooler height and radiator thickness as separate limits.
